Mold Star 20T

Mold Star 20T

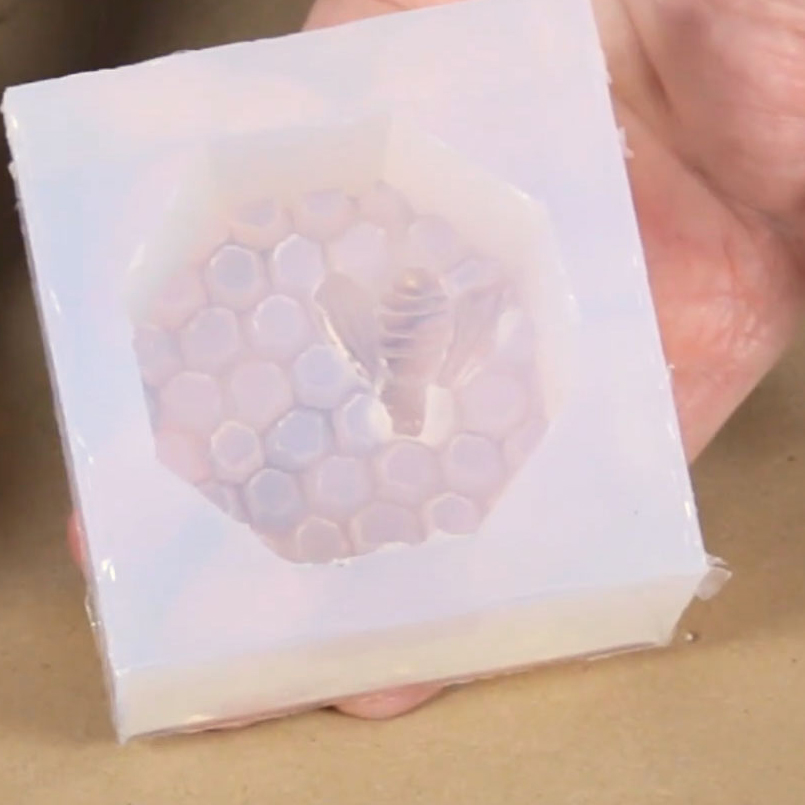

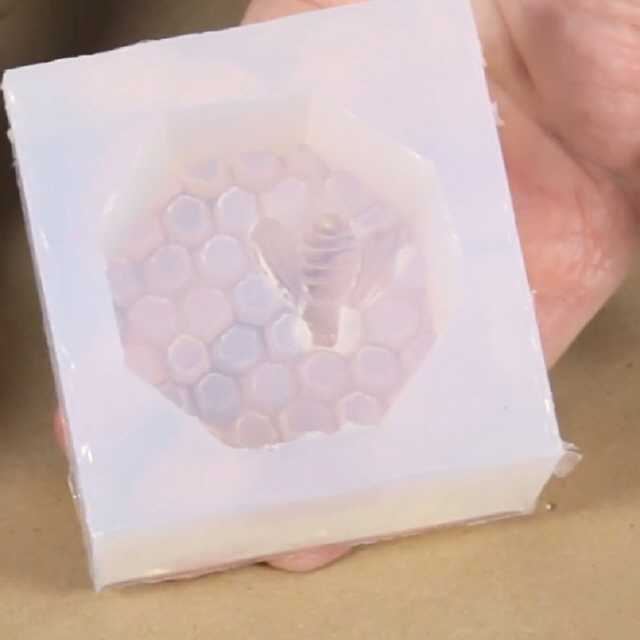

Mold Star ™ 20T es una silicona de platino translúcida con una dureza Shore 20A. Se mezcla en 1A: 1B por volumen (no necesita una balanza). Tiene una viscosidad relativamente baja y para la mayoría de las aplicaciones no requiere desgasificación al vacío. El tiempo de trabajo es de 6 minutos y el tiempo de curado de 30 minutos. Almacenaje y trabajo a una temperatura ambiente de 18º - 22º.

Mold Star ™ 20T es una silicona translúcida, suave, resistente a la rotura y además tiene una contracción muy baja a largo plazo. Los moldes hechos con Mold Star ™ le durarán mucho tiempo en su biblioteca de moldes y son muy buenos para colar cera, yeso, resinas, cemento y otros materiales. La silicona Mold Star ™ 20T se puede espesar con Thi-Vex ™ esto le permitirá aplicar la silicona con brocha. Al ser un producto translúcido puede conseguir efectos de color mezclando con los pigmentos Silc Pig ™ o también con los polvos Cast Magic ™.

Mold Star ™ 20T resiste al calor hasta 232 ° C y es una silicona adecuada para colar aleaciones de metales que funden a baja temperatura.

Nota: Este producto no curará en contacto con superficies que contengan azufre, incluso cuando estas superficies estén selladas.

Mold Star 20T

Instructions

Safety - Use in a properly ventilated area (“room size” ventilation). Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. Wear vinyl gloves only. Latex gloves will inhibit the cure of the rubber.

Store and use material at room temperature (73°F/23°C). Warmer temperatures will drastically reduce working time and cure time. Storing material at warmer temperatures will also reduce the usable shelf life of unused material. These products have a limited shelf life and should be used as soon as possible.

Cure Inhibition - Addition cured silicone rubber may be inhibited by certain contaminants in or on the pattern to be molded resulting in tackiness at the pattern interface or a total lack of cure throughout the mold. Latex, sulfur clays, certain wood surfaces, newly cast polyester, epoxy or urethane rubber my cause inhibition. If compatibility between the rubber and the surface is a concern, a small-scale test is recommended. Apply a small amount of rubber onto a non-critical area of the pattern. Inhibition has occurred if the rubber is gummy or uncured after the recommended cure time has passed. To prevent inhibition, one or more coatings of a clear acrylic lacquer applied to the model surface is usually effective. Allow any sealer to thoroughly dry before applying rubber.

Even with a sealer, Mold Star™ 20T will not cure against surfaces containing sulfur. If you are not sure if your clay contains sulfur, do a small compatibility test before using for an important project.

Applying A Release Agent - Although not usually necessary, a release agent will make demolding easier when casting into most surfaces. Ease Release™ 200 is a proven release agent for releasing silicone from silicone or other surfaces. Mann Ease Release™ products are available from Smooth-On or your Smooth-On distributor.

Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

Measuring & Mixing - Before you begin, pre-mix Part A and Part B separately. After dispensing required amounts of Parts A and B into mixing container (1A:1B by volume or weight), mix thoroughly making sure that you scrape the sides and bottom of the mixing container several times.

Optional... Vacuum Degassing - Although not necessary, vacuum degassing helps eliminate any entrapped air in pourable silicone rubber. After mixing parts A and B, vacuum material for 2-3 minutes at 29 inches of mercury, making sure that you leave enough room in container for product expansion.

Pouring - For best results, pour your mixture in a single spot at the lowest point of the containment field. Let the rubber seek its own level. A uniform flow will help minimize entrapped air. If using as a mold material, the liquid rubber should level off at least 1/2” (1.3 cm) over the highest point of the model surface.

Curing - Allow mold rubber to cure for 30 minutes at room temperature (73°F/23°C) before demolding.

Heat Curing - Time to demold can be reduced with mild heat. Example: After pouring Mold Star™ 20T at room temperature, place the mold in a hot box or industrial oven at 140°F (60°C). This may reduce the demold time substantially. Note - time will vary depending on mold thickness.

Mold Performance & Storage - The physical life of the mold depends on how you use it (materials cast, frequency, etc.). Casting abrasive materials such as concrete can quickly erode mold detail, while casting non-abrasive materials (wax) will not affect mold detail. Before storing, the mold should be cleaned with a soap solution and wiped fully dry. Two part (or more) molds should be assembled. Molds should be stored on a level surface in a cool, dry environment.
