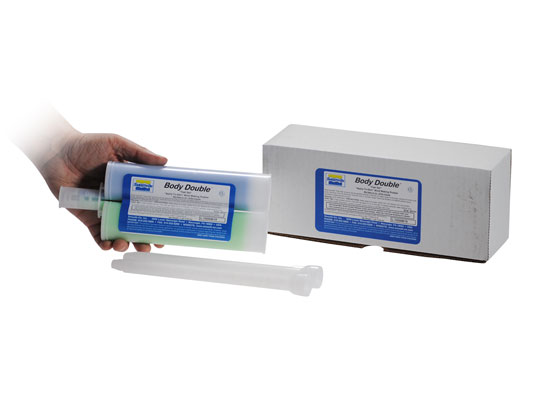

BodyDouble Rápido Cartucho / 400ml

BD Rápido Cartucho / 400ml.

Cartuchos de Body Double Rápido para usar con la pistola dispensadora Body Double. A+B= 400ml.

Más información acerca de Body Double:

bodydoubletb.pdf [60 KB]

Instructions

PREPARATION...

Store and use Body Double™ at room temperature 23°C. Warmer temperatures will drastically reduce working time and cure time. Storing material at warmer temperatures will also reduce the usable shelf life of unused material. This product has a limited shelf life and should be used as soon as possible. Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. Mixing sticks should be flat and stiff with defined edges for scraping the sides and bottom of your mixing container.

Safety - We recommend that you do a small scale test on the back of your hand to ensure that you have no allergic reaction to the release preparations or mold rubber. If you notice any type of skin reaction, do not use this product. Body Double™ is safe for skin application only – it should not be ingested. Do not use to make molds of the inside of the mouth. You can make molds of a smile - parted lips with teeth exposed, but closed together.

Avoid Open Eye Contact - In making a mold of the face, applying this silicone to closed eyes (after applying Body Double™ release cream to avoid encapsulating eye lashes) is common practice. At no time should this or any other Smooth-On material come in contact with open eyes.

Life casting is best done with at least three people. You will be working with materials that set up quickly. One person is the designated model and the others will mix and apply mold rubber and support shell.

Cure Inhibition - Contaminants on the skin will cause inhibition. Prior to applying Body Double™ Release Cream, skin should be clean and free of make-up, cosmetics, skin creams, oils perfumes, etc. Do not apply rubber over skin coated with an aloe-based product, as this will cause cure inhibition. Do not use latex gloves. If using a bald cap, make sure it is latex free.

Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

RELEASING BODY DOUBLE™...

Body Double™ will not stick to skin but it will “mechanically lock” onto skin hair including facial hair, eyebrows, eyelashes etc. Body Double™ Release Cream or HYPER-FOLIC™ release additive (see below) will minimize mechanical lock. Also, you can shave the intended molding area prior to applying Body Double™.

Body Double™ Release Cream available from Form X is a non-toxic skin conditioner that will aid in releasing Body Double™ mold rubber from skin surfaces with or without hair. It washes off with soap and water. It is highly concentrated, so a little goes a long way. To use, wash intended body section with soap and water and dry thoroughly. Liberally apply Body Double™ Release Cream to all skin surfaces (bare and hair covered) that will contact mold rubber. Take special care to aggressively massage and work the cream into and over body hair. Body hair not thoroughly coated with release cream will become encapsulated and stuck in rubber which will be difficult & painful to remove.

HYPER-FOLIC™ Release Additive is a non-toxic, skin conditioning liquid that is mixed with Body Double™ silicone mold rubber prior to applying rubber to the skin. HYPER-FOLIC™ will not only aid in releasing cured rubber from the skin but will also release cured rubber from hair-covered skin surfaces (closely cropped beards, moustaches, eye-brows, pubic hair, etc.) See the HYPER-FOLIC™ Technical Bulletin (available at www.smooth-on.com) for more information.

MEASURING & MIXING...

Body Double™ “Fast Set” is best dispensed through its pre-measured 400 ml. cartridge tube system with static mixing tube (1/2” – 18 elements). Cartridge dispensing guns and static mixing tubes are available from Form X. On cartridge tube set (A+B), remove clear cap from cartridge end and Twist / break off end-cap. Screw on static mixing tube and place cartridge in dispensing gun.

Do not squeeze trigger until you are ready to apply rubber. After squeezing trigger, Parts A & B will quickly be mixed through the static mixing tube and dispensed through the tip in a uniform color. Dispense directly onto skin and immediately spread mixture over all surfaces to be molded using a soft bristle brush.

Note: If you stop dispensing, product may cure in static mixing tube. If this happens, replace static mixing tube.

Storage Of Unused Material – Leave static mixing tube with cured material attached to cartridge. To use again, simply replace static mixing tube.

Body Double™ “Standard Set” is available in larger units . Mix ratio is 1A:1B by volume. Stir Part A and Part B thoroughly before dispensing. Dispense equal amounts into a mixing container and aggressively hand mix, making sure that you scrape the sides and bottom of your mixing container to attain a uniform color and eliminate any color streaks. Apply to skin with soft bristle brush.

Optional: For initial layer or “detail coat”, rubber can be thinned for easier application with Smooth-On’s Silicone Thinner. Apply to skin with soft bristle brush. Subsequent layers can be applied without thinner.

Add material as necessary – Body Double™ sticks to itself, so adding more rubber is not a problem. Add new material as soon as possible. Be careful when adding new material to cured material - carefully “marry” sections to minimize seam lines. Final mold thickness should be 1 cm. Let material cure fully before applying support shell.

APPLYING A SUPPORT SHELL, DEMOLDING & CASTING...

Gypsona™ Plaster Bandages (available from Form X) remain the industry standard for making a fast, strong support shell. After Body Double™ rubber has cured, brush a thin layer of petroleum jelly onto rubber mold surface to minimize chances of suction or mechanical locking of rigid support shell. Wet and apply bandages over rubber mold surface, following contours. Bandages dry in 15 minutes and can be removed from rubber surface.

Demold Rubber From Body - Slowly peel rubber away from skin surface. If you encounter encapsulated hair that is stuck (did not get enough release agent), you may have to slowly cut the hair with scissors. Be careful not to cut your skin or the mold rubber.

Removing Body Double™ Release Cream – Make-Up Remover will work well. Apply to skin and then wash area with soap and water. Baby oil will also work, but may leave a residue on the skin.

Casting - Seat rubber mold into support shell before casting. A release agent is not necessary when casting most materials. If casting another platinum-cure silicone rubber, use Ease Release™ 200. If casting resins, let rubber cure at least 60 minutes before casting. Store cured Body Double™ rubber mold in support shell for best results.

¿Cuánto Body Double necesito?

bodydoublecoveragetb.pdf [11 KB]
